SPECIFICATIONS
Dimensions
Material & Hardware
Electronics
Accessory
Dimensions
・Body
Shape: | Modern Archtop |
Thickness: | 45mm |
・Neck
Scale: | 34inch(864mm) |
Fret: | 20F Jescar FW-51100 Nickel Silver |
Radius: | 10-12inch Compound Radius |
Shape: | Standard Grip |
Thickness: | 1F-22mm 12F-24.5mm |
Nut wide: | 38mm |
String Pitch: | 19mm |
Material & Hardware
Body: | Alder 2P |
Neck: | Hard Maple |
Fingerboard: | Indian Rosewood or Hard Maple |
Side Position Mark: | Luminlay Dots |
Tuners: | GOTOH GB11W |
Bridge: | GOTOH S510B |
Knobs: | GOTOH VK1-18 |
Hardware Color: | Chrome or Black |
Strings: | EXL165 45-105 |
Electronics
SS: | SAYTONE Hand Winding Pickups |
Accessory
Case: | SHB130 Black Semi Hard Case |
Feature
How to order S-420b
- S-420b
- Color Listから選択して下さい。
Download Color List on Support page to choose a top body color you like. - No.3で選択したボディウッドにより、適用できるカラーリングと仕上がりが異なります。
The applied colors and finishes are different depending on the wood material of body. - アルダーはクローズドポアー、スワンプアッシュはオープンポアー仕上げとなります。
The standard finishes are that Alder is Closed Pore and Swamp Ash is Open Pore.
- No.4でWengeをセレクトしている場合はLuminlay Dotsが追加されます。
Luminlay Dots are added if you choose Wenge at No.4. - No.4でHard Mapleを選択している場合はNo Dotsが標準ですが、オプションで2種類のポジションマークをセレクト可能です。
If you choose Hard Maple at No.4, the standard is without position mark on fingerboard but you can choose either two kinds of dots in option as follows.
・Standard Dots
・Luminlay Dots
Luminlay Side Dotsが搭載されます。オプションはありません。
It is installed Luminlay Dots on neck side and has no option.
- モデルと仕様に合ったロゴがセレクトされます。
It is selected a logo that matches the model and specifications. - No.4でWengeを選択した場合、No.5で選択したLine woodのカラーと同色となります。
The logo is the same color as Line Wood choosing at No.5 if you choose Wenge at No.4.
このモデルはピックガードを採用していません。
It is the model that does not come with Pickguard.
SSとなります。オプションはありません。
The pickup is only SS layout. There is no potions.
- Vantage set
シングルコイルのVantage Setが搭載されます。
It is installed Vantage set for Single Coil.
Black Coverとなります。オプションはありません。
It is with Black Cover. There is no options.
このモデルはハムバッカーを採用していません。
This model does not adopt Humbucker.

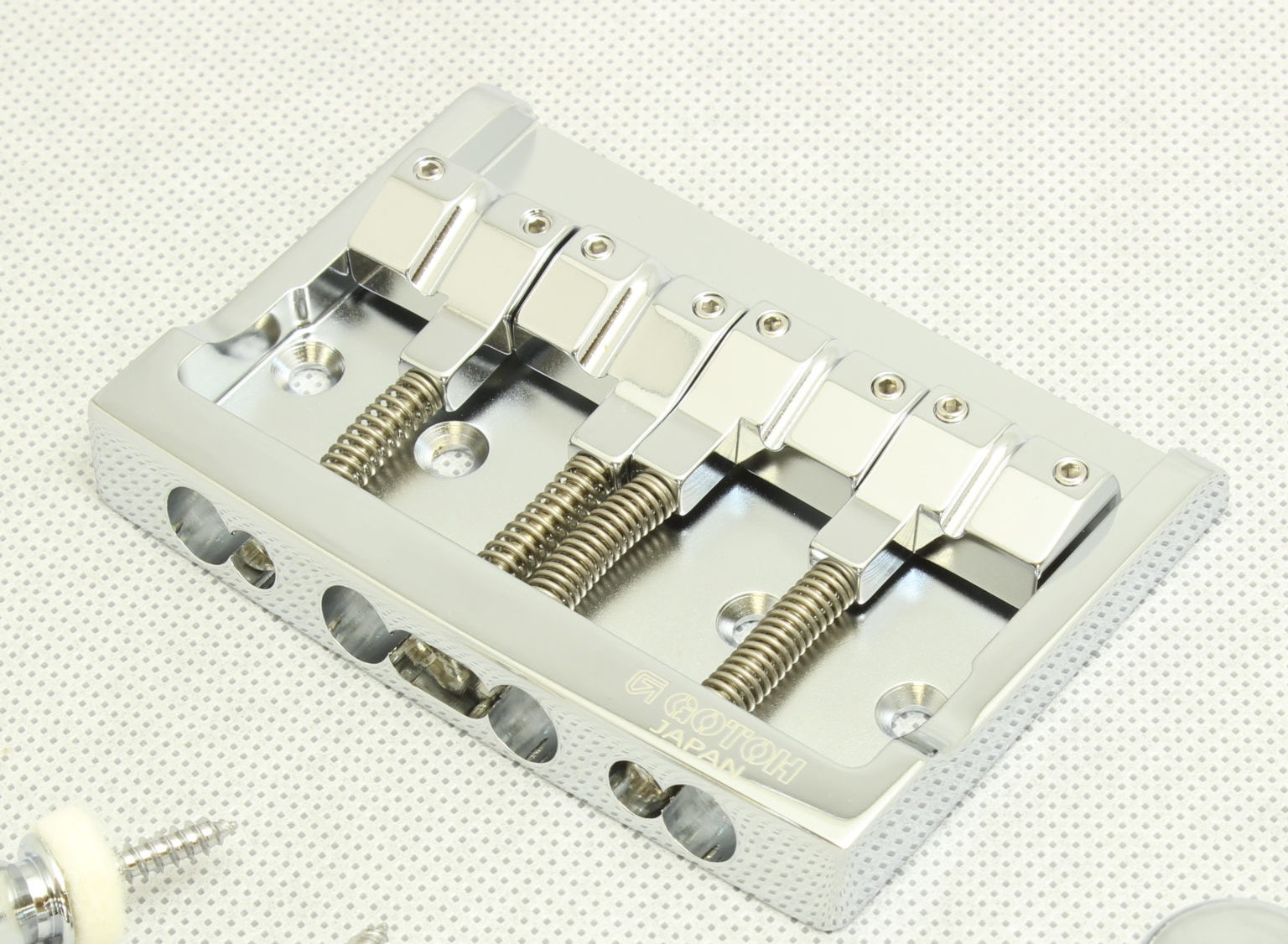

GOTOH S510B-4が搭載されます。オプションはありません。
It is installed GOTOH S510B-4. There is no options.

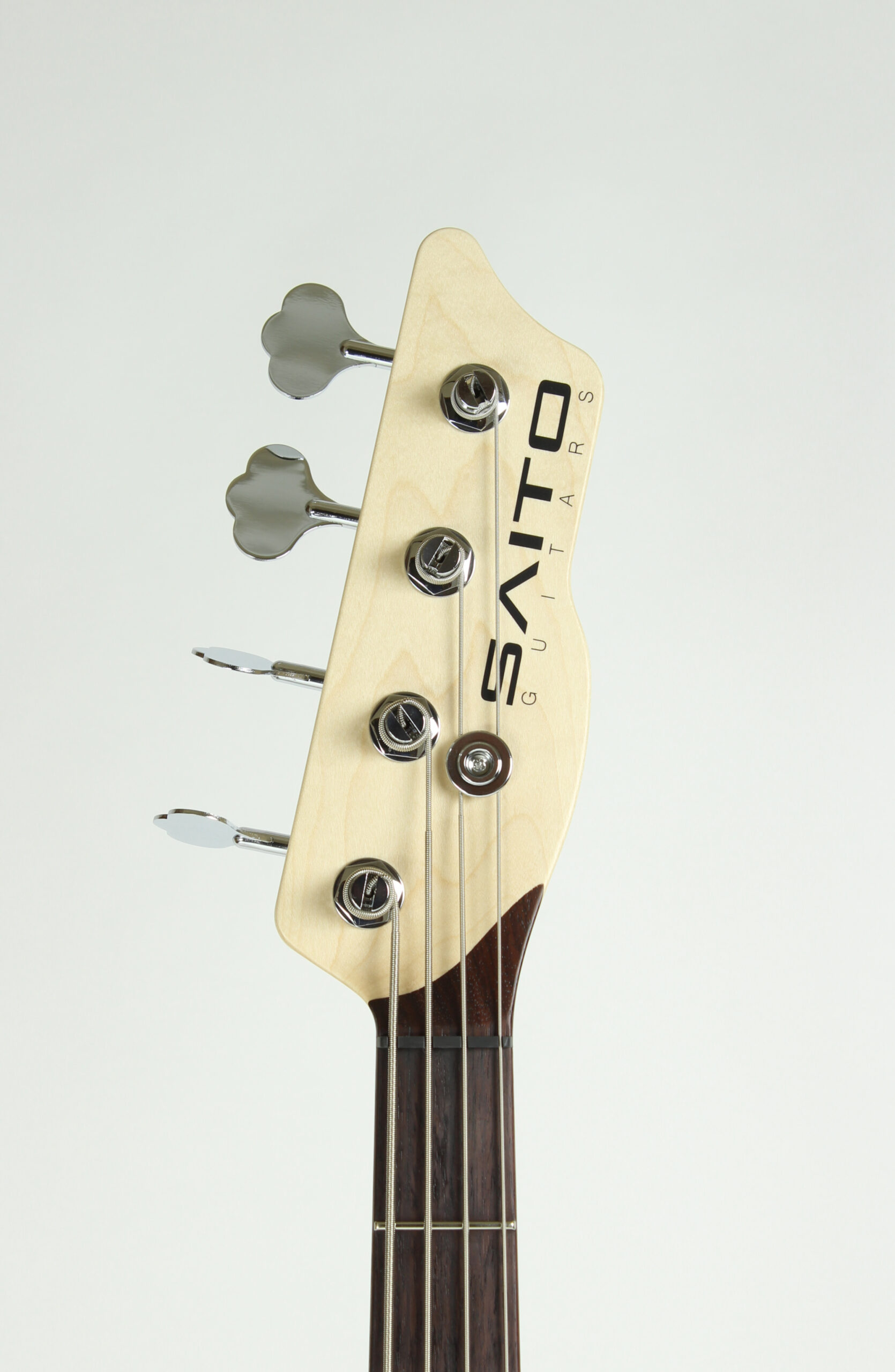

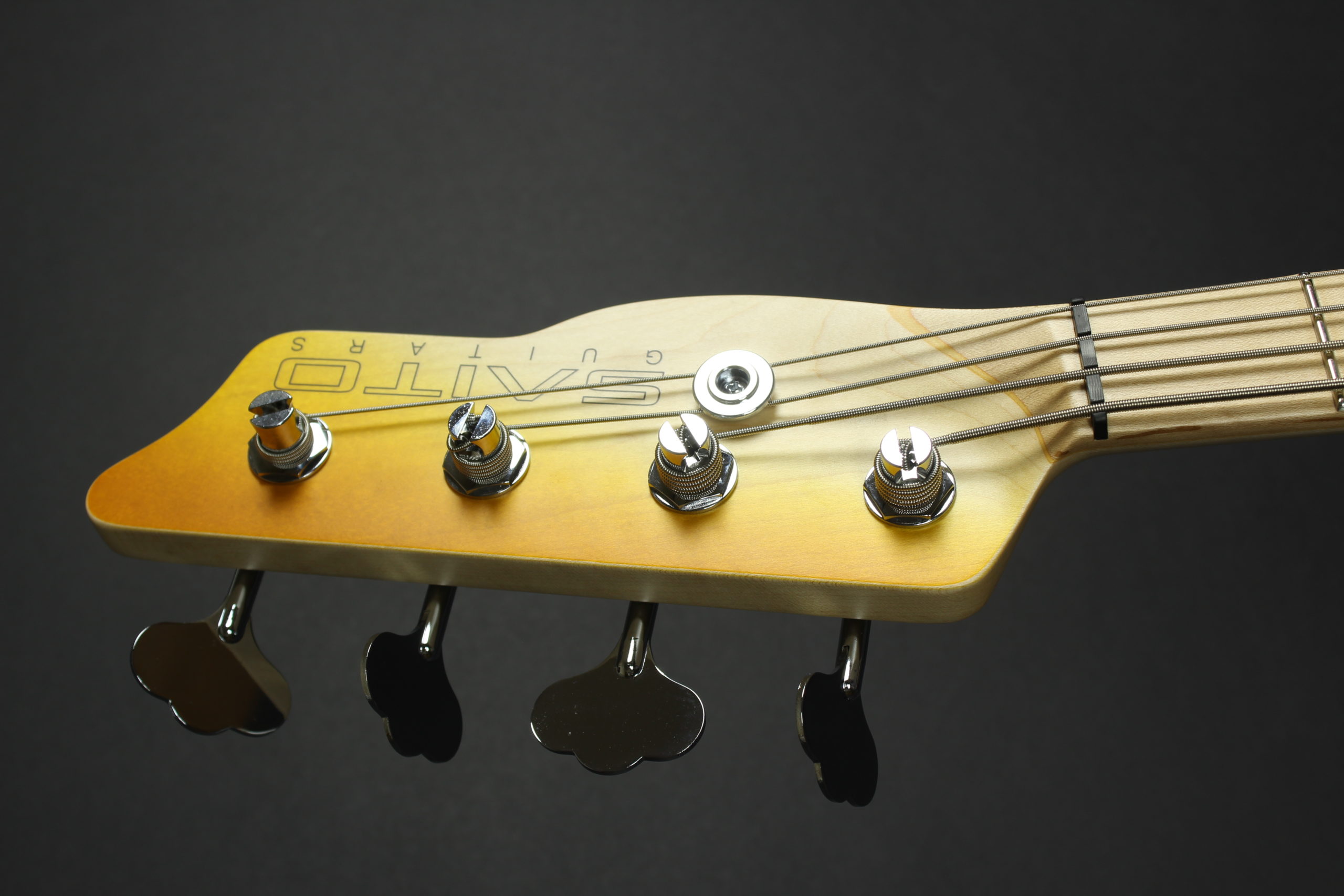

GOTOH GB-11W-4が搭載されます。オプションはありません。
It is installed GB-11W-4. There is no options.
