SPECIFICATIONS
Dimensions
Material & Hardware
Electronics
Accessory
Dimensions
- Body
Shape: | Modern Archtop |
Thickness: | 45mm |
- Neck
Scale: | 25.5inch(648mm) |
Fret: | 22F Jescar FW-51100Nickel Silver |
Radius: | 10-12inch Compound Radius |
Shape: | Standard Grip |
Thickness: | 1F-21mm 12F-24mm |
Nut wide: | 42mm |
String Pitch: | 10.8mm |
Material & Hardware
Body: | Alder 2P |
Neck: | Hard Maple |
Fingerboard: | Indian Rosewood or Hard Maple |
Side Position Mark: | Luminlay |
Tuners: | GOTOH SD91 MG-T |
Bridge: | GOTOH 510T-FE1 |
Knobs: | GOTOH VK1-18 |
Hardware Color: | Chrome or Black |
Strings: | EXL110 10-46 |
Electronics
SSH: | SAYTONE Hand Winding Pickups – Scream (F, M) & Sledge a (R) set or – Growl (F, M)) & Bore Up (R) set 1Volume-1Tone(Tap) 5way Switch |
HH: | SAYTONE Hand Winding Pickups Sledge a (F) & Bore Up (R) set 1Volume-1Tone(Tap) 3way Switch |
Single Coil Cover: | Black or White (Front & Middle) |
Hum Bobbin Color: | Double Black, Double White (Front & Rear) |
Accessory
Case: | SHE-150L Semi Hard |
Feature
How to order S-622
- S-622
- S-622L(Lefty)
- Color Listから選択して下さい。
Download Color List on Support page to choose a top body color you like. - No.3で選択したボディウッドにより、適用できるカラーリングと仕上がりが異なります。
The applied colors and finishes are different depending on the wood material of body. - アルダーはクローズドポアー、スワンプアッシュはオープンポアー仕上げとなります。
The standard finishes are that Alder is Closed Pore and Swamp Ash is Open Pore.
- No.4でWengeをセレクトしている場合はLuminlay Dotsが追加されます
Luminlay Dots are added if you choose Wenge at No.4. - No.4でHard Mapleを選択している場合はNo Dotsが標準ですが、オプションで2種類のポジションマークをセレクト可能です。
If you choose Hard Maple at No.4, the standard is without position mark on fingerboard but you can choose either two kinds of dots in option as follows.
・Standard Dots
・Luminlay Dots
Luminlay Side Dotsが搭載されます。オプションはありません。
It is installed Luminlay Dots on neck side. There is no options.
- モデルと仕様に合ったロゴがセレクトされます。
It is selected a logo that matches the model and specifications. - No.4でWengeを選択した場合、No.5で選択したLine woodのカラーと同色となります。
The logo is the same color as Line Wood choosing at No.5 if you choose Wenge at No.4.
このモデルはピックガードを採用していません。
It is the model that does not come with Pickguard.
- Scream-Sledgeα set
エナメルワイヤーのシングルコイルScreamをフロントとミドルに、リアハムバッカーにSledgeαを搭載した標準のピックアップセットです。ポジション毎の音量差が少なく、バランスの取れたサウンドです。
This is the standard pickup set combine Scream, which is single coil and wound with Enamel Wire, for front and middle pickups and Sledge α for rear humbucker. The difference for sound volume at each pickup positions are a little and the sound is well balanced. - Growl-Bore Up set
ヘヴィフォームバーのシングルコイルGrowlと、ホットなBore UPハムバッカーを搭載したセットです。リアハムバッカーでディストーションサウンドを主にプレイしたい場合はこちらがお勧めです。
This is the set that installed Growl of single coil with Heavy Formvar and Bore Up of hottest sound humbucker. It is the recommendation when you want to play mainly distortion sound in rear humbucker.

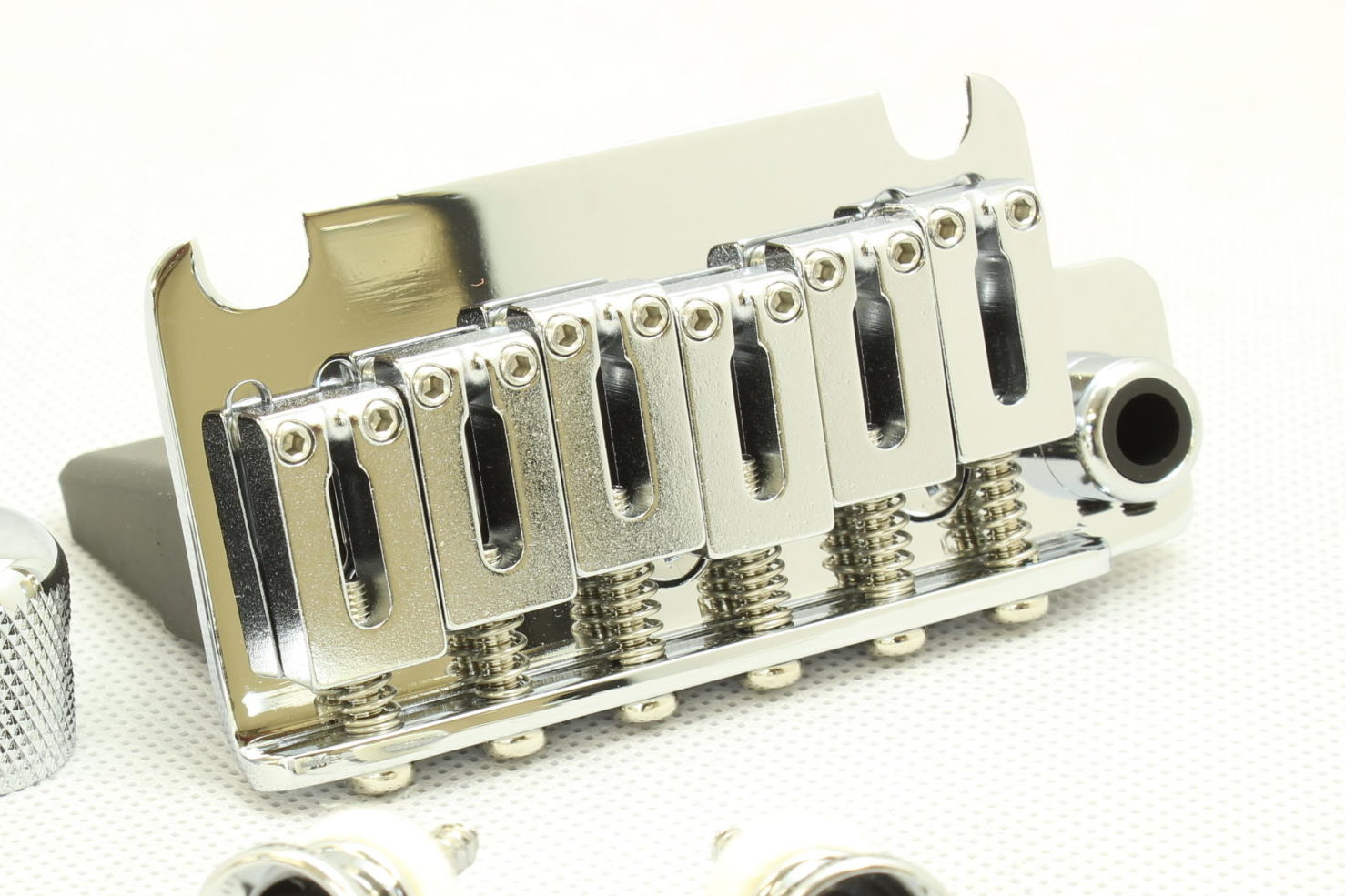

GOTOH 510T-FE1 Tremoloが搭載されます。オプションはありません。
It is installed GOTOH 510T-FE1 Tremolo. There is no options.
GOTOH SD91-MG-Tが搭載されます。オプションはありません。
It is installed GOTOH SD91-MG-T. There is no options.
