SPECIFICATIONS
Dimensions
Material & Hardware
Electronics
Accessory
Dimensions
・Body
Shape: | 24 Modern Style |
Thickness: | 45mm |
・Neck
Bridge | Tremolo GOTOH 510T-FE1 |
Hardtail GOTOH 510FX-6 |
Lock Tremolo GOTOH GE1996T |
Scale: | 25.5 inch (648 mm) | 25.5 inch (648 mm) | 25.5 inch (648 mm) |
Fret: | 24F Jescar FW-57110 Nickel Silver | 24F Jescar FW-57110 Nickel Silver | 24F Jescar FW-57110 Nickel Silver |
Radius: | 10-12inch Compound Radius | 10-12inch Compound Radius | 14-16inch Compound Radius |
Shape: | Versatile Grip | Versatile Grip | Versatile Grip |
Thickness: | 1F-21.5mm 12F-24mm | 1F-21.5mm 12F-24mm | 1F-21.5mm 12F-24mm |
Nut Width: | 41.5 mm | 41.5 mm | 41.5 mm |
String Pitch: | 10.8 mm | 10.5 mm | 10.8 mm |
Material & Hardware
Body: | Alder 2P | ||
Neck: | Hard Maple | ||
Fingerboard: | Indian Rosewood or Hard Mple | ||
Side Position Mark: | Luminlay | ||
Tuners: | GOTOH SG381 MG-T | ||
Knobs: | GOTOH VK1-18 | ||
Hardware Color: | Chrome or Black | ||

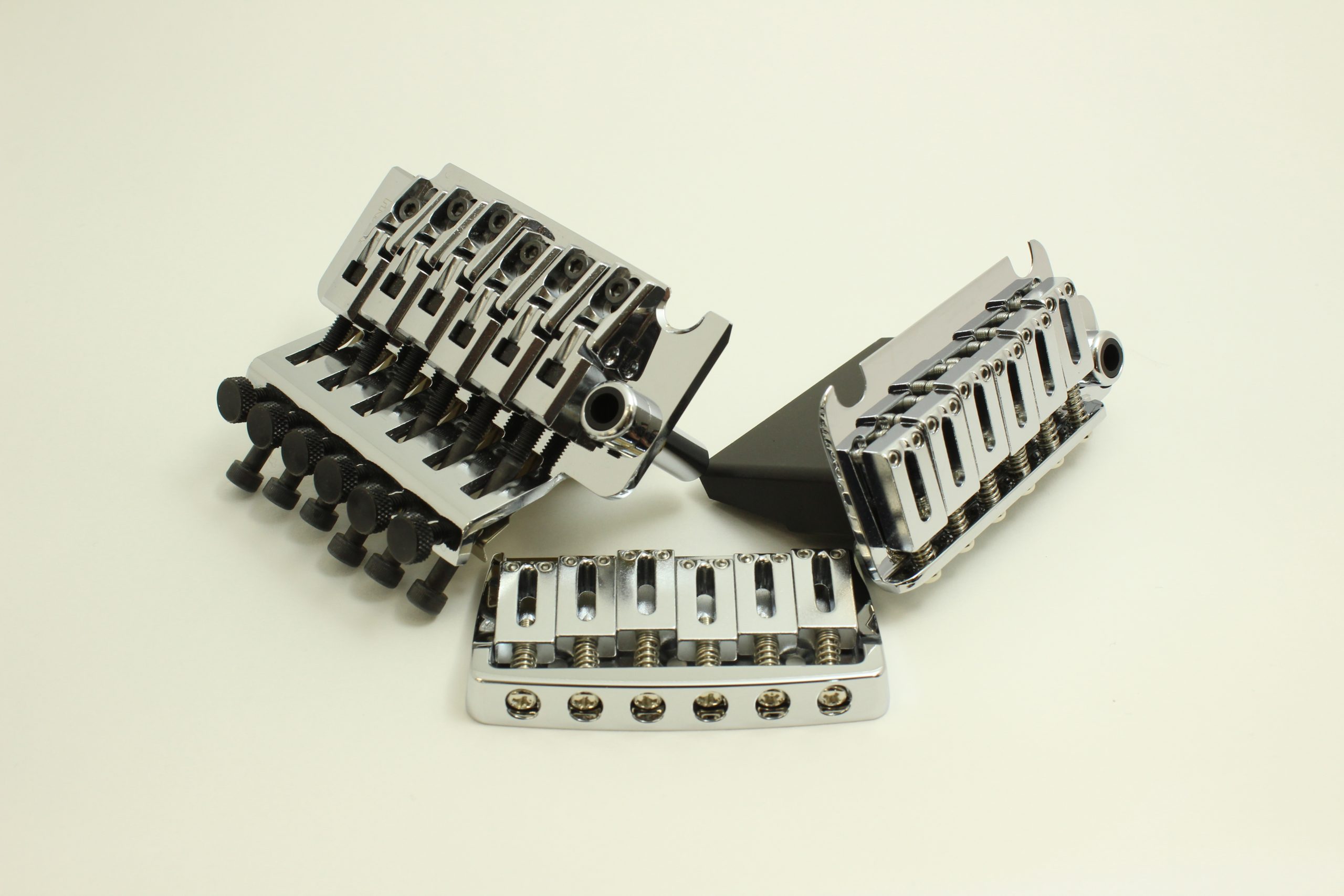

Bridge: | Tremolo GOTOH 510T-FE1 | Hardtail GOTOH 510FX-6 | Lock Tremolo GOTOH GE1996T |
Strings: | EXL110 10-46 | EXL110 10-46 | EXL120 09-42 |
Electronics
SSH: | SAYTONE Hand Winding Pickups – Scream (F, M) & Sledge α (R) set or – Growl (F, M)) & Bore Up (R) set 1Volume-1Tone(Tap) 5way Switch |
HH: | SAYTONE Hand Winding Pickups – Sledge α (F) & Bore Up (R) set 1Volume-1Tone(Tap) 3way Switch |
Single Coil Cover: | Black or White (Front, Middle & Rear) |
Hum Bobbin Color: | Double Black or Double White |
Accessory
Feature
How to order S-624
- S-624
- Color Listから選択して下さい。
Download Color List on Support page to choose a top body color you like. - No.3で選択したボディウッドにより、適用できるカラーリングと仕上がりが異なります。
The applied colors and finishes are different depending on the wood material of body. - アルダーはクローズドポアー、スワンプアッシュはオープンポアー仕上げとなります。
The standard finishes are that Alder is Closed Pore and Swamp Ash is Open Pore.
- No.4でWengeをセレクトしている場合はLuminlay Dotsが追加されます。
Luminlay Dots are added if you choose Wenge at No.4. - No.4でHard Mapleを選択している場合はNo Dotsが標準ですが、オプションで2種類のポジションマークをセレクト可能です。
If you choose Hard Maple at No.4, the standard is without position mark on fingerboard but you can choose either two kinds of dots in option.
・Standard Dots
・Luminlay Dots
Luminlay Side Dotsが搭載されます。オプションはありません。
It is installed Luminlay Dots on neck side and has no option.
- モデルと仕様に合ったロゴがセレクトされます。
It is selected a logo that matches the model and specifications. - No.4でWengeを選択した場合、No.5で選択したLine woodのカラーと同色となります。
The logo is the same color as Line Wood choosing at No.5 if you choose Wenge at No.4.
このモデルはピックガードを採用していません。
It is the model that does not come with Pickguard.
- Scream-Sledgeα set
エナメルワイヤーのシングルコイルScreamをフロントとミドルに、リアハムバッカーにSledgeαを搭載した標準のピックアップセットです。ポジション毎の音量差が少なく、バランスの取れたサウンドです。
It is the standard pickup set that installed Scream of single coil wound with Plain Enamel wire for front and middle and Sledge for rear humbucker. The difference for sound volume at each pickup position are little and the sound is well balanced. - Growl-Bore Up set
ヘヴィフォームバーのシングルコイルGrowlと、ホットなBore UPハムバッカーを搭載したセットです。リアハムバッカーでディストーションサウンドを主にプレイしたい場合はこちらがお勧めです。
It is the set that installed Growl of single coil and Bore Up with hottest sound. This is the recommendation when you want to play mainly with distortion sound in rear humbucker.

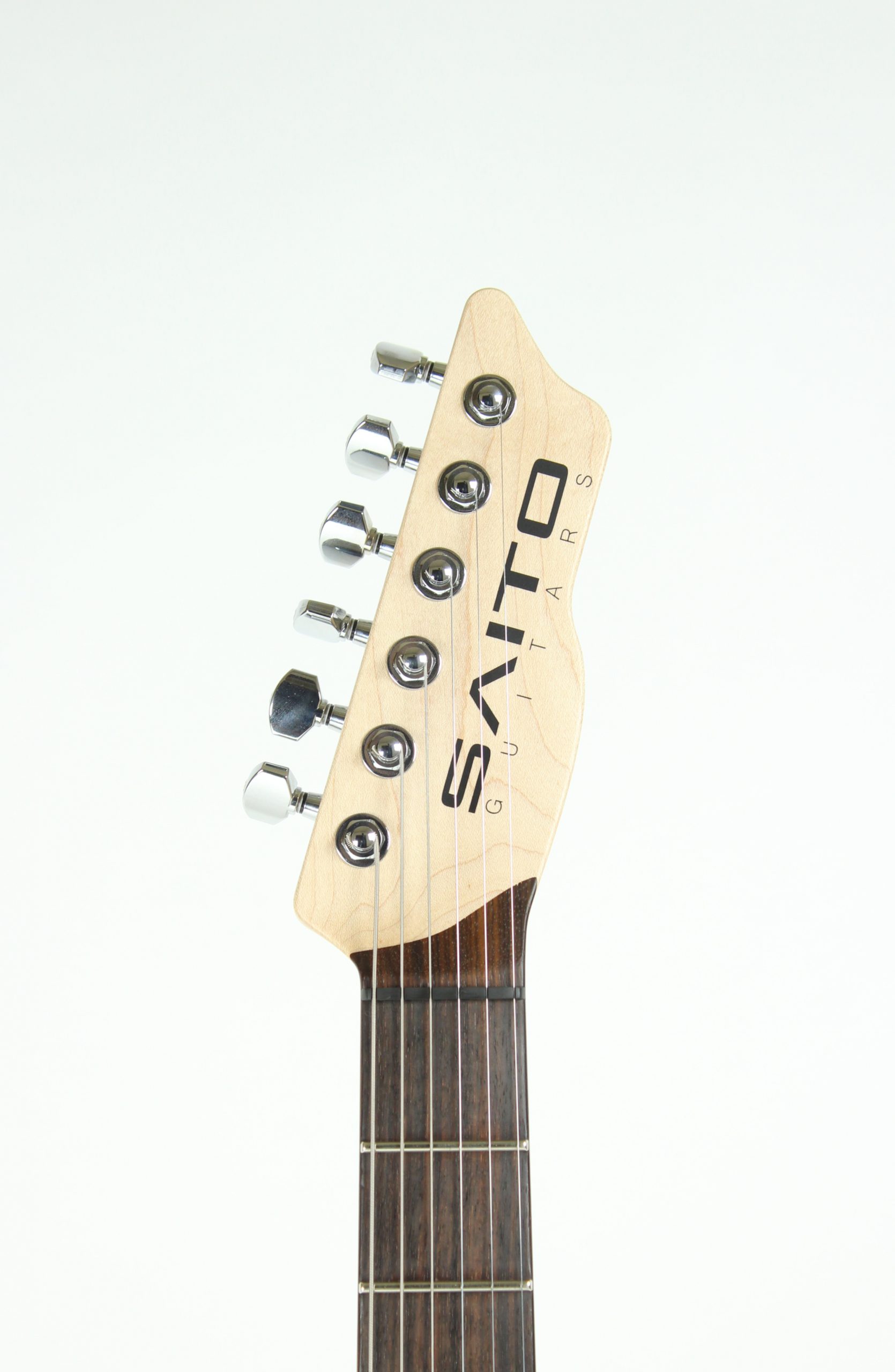

GOTOH SG381 MG-Tが搭載されます。オプションはありません。
This model is installed GOTOH SG381 MG-T and has no option.
