SPECIFICATIONS
Dimensions
Material & Hardware
Electronics
Accessory
Dimensions
・Body
Shape: | 24 Modern Style |
Thickness: | 45mm |
・Neck
Scale: | 25.5″-26.5(648mm-673mm) |
Fret: | 24F Jescar FW-57110 Nickel Silver |
Radius: | 14-16inch Compound Radius |
Shape: | Versatile Grip |
Thickness: | 1F-21.5mm 12F-24mm |
Nut wide: | 42mm |
String Pitch: | 10.8mm |
Material & Hardware
Body: | Alder 2P |
Neck: | Hard Maple |
Fingerboard: | Indian Rosewood or Hard Maple |

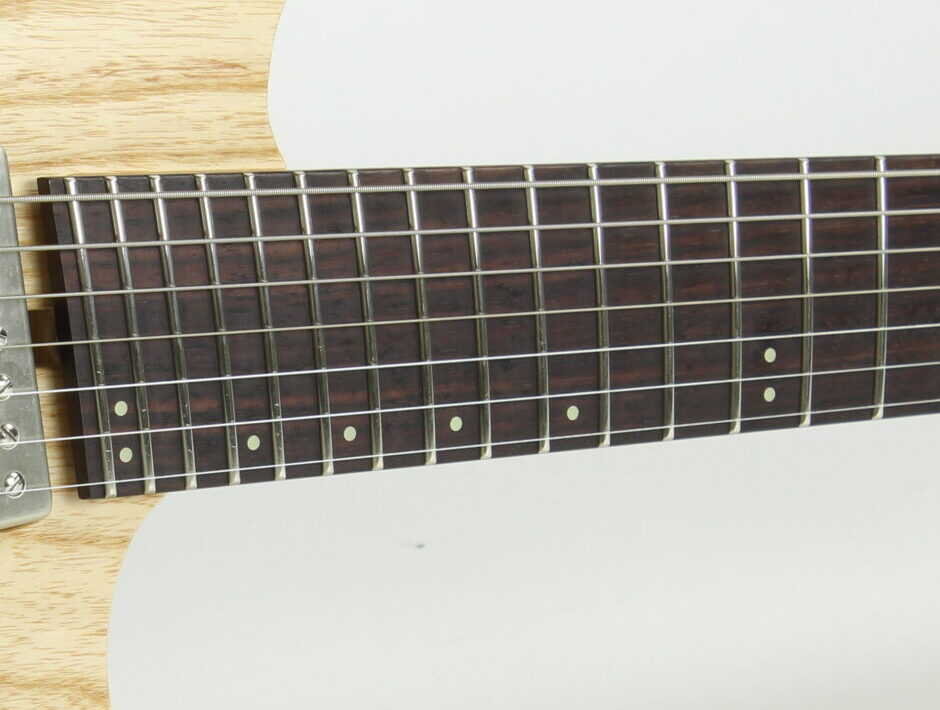

Position Mark: | Luminlay Dots |

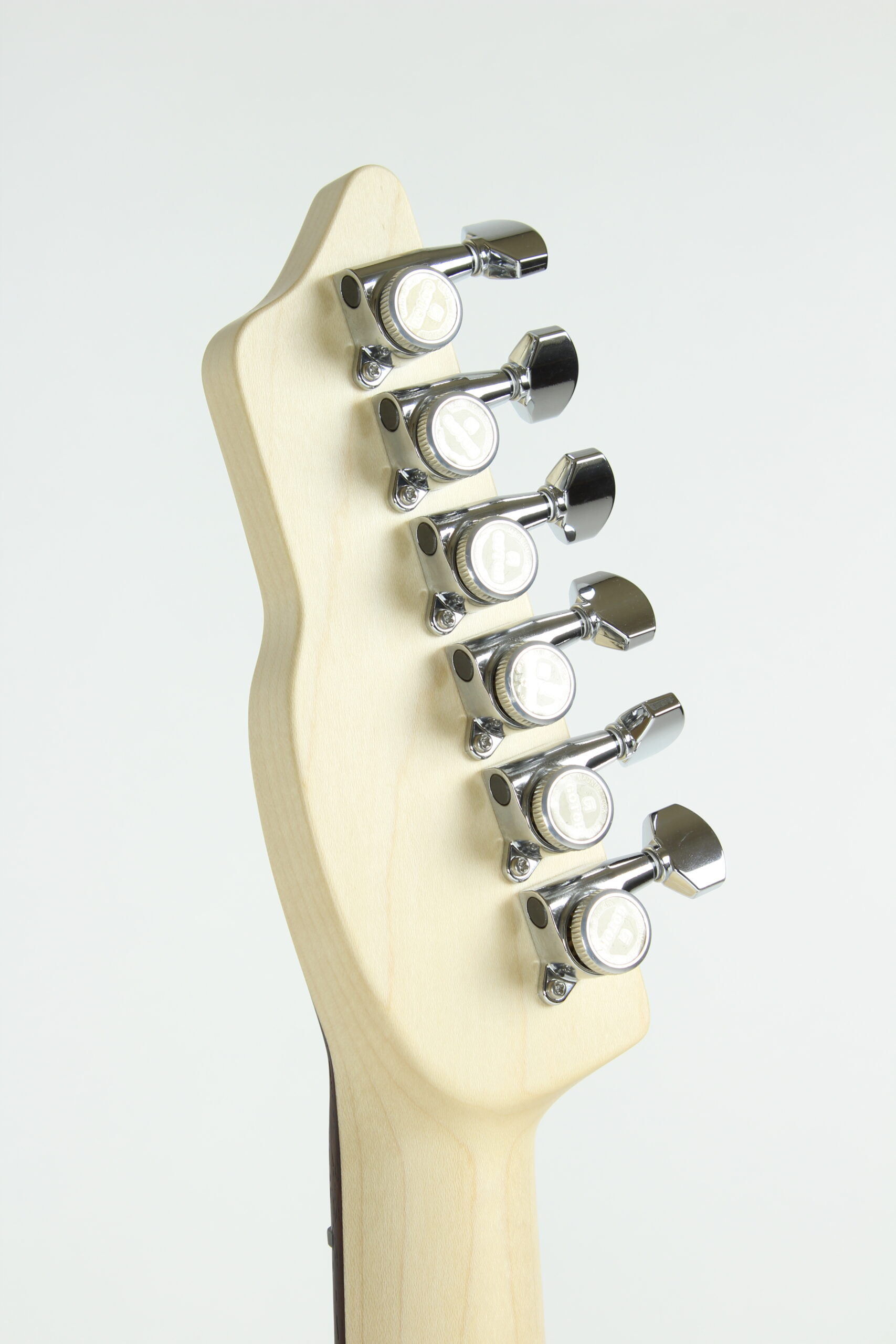

Tuners: | GOTOH SG381 MG-T |

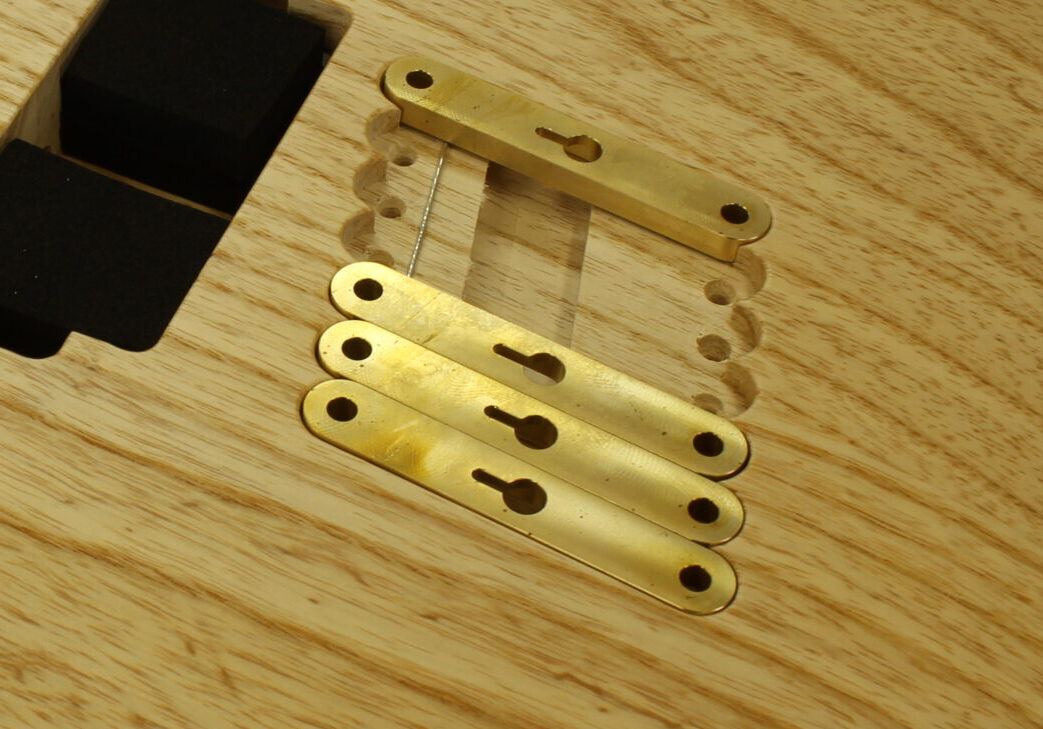

Bridge: | SAITO HTI Bridge with Brass Insert Plate |
Knobs: | GOTOH VK1-18 |
Hardware Color: | Chrome or Black |
Strings: | EXL110 10-46 |
Electronics
HH: | SAYTONE Hand Winding Pickups – Sledge a (F) & Bore Up (R) set 1Volume-1Tone(Tap) 3way Switch |
Accessory
Feature
How to order S-624MS/Phase2
- S-624MS/Phase2
- Color Listから選択して下さい。
Download Color List on Support page to choose a top body color you like. - No.3で選択したボディウッドにより、適用できるカラーリングと仕上がりが異なります。
The applied colors and finishes are different depending on the wood material of body. - アルダーはクローズドポアー、スワンプアッシュはオープンポアー仕上げとなります。
The standard finishes are that Alder is Closed Pore and Swamp Ash is Open Pore.
Luminlay Side Dotsが搭載されます。オプションはありません。
It is installed Luminlay Dots on neck side and has no option.

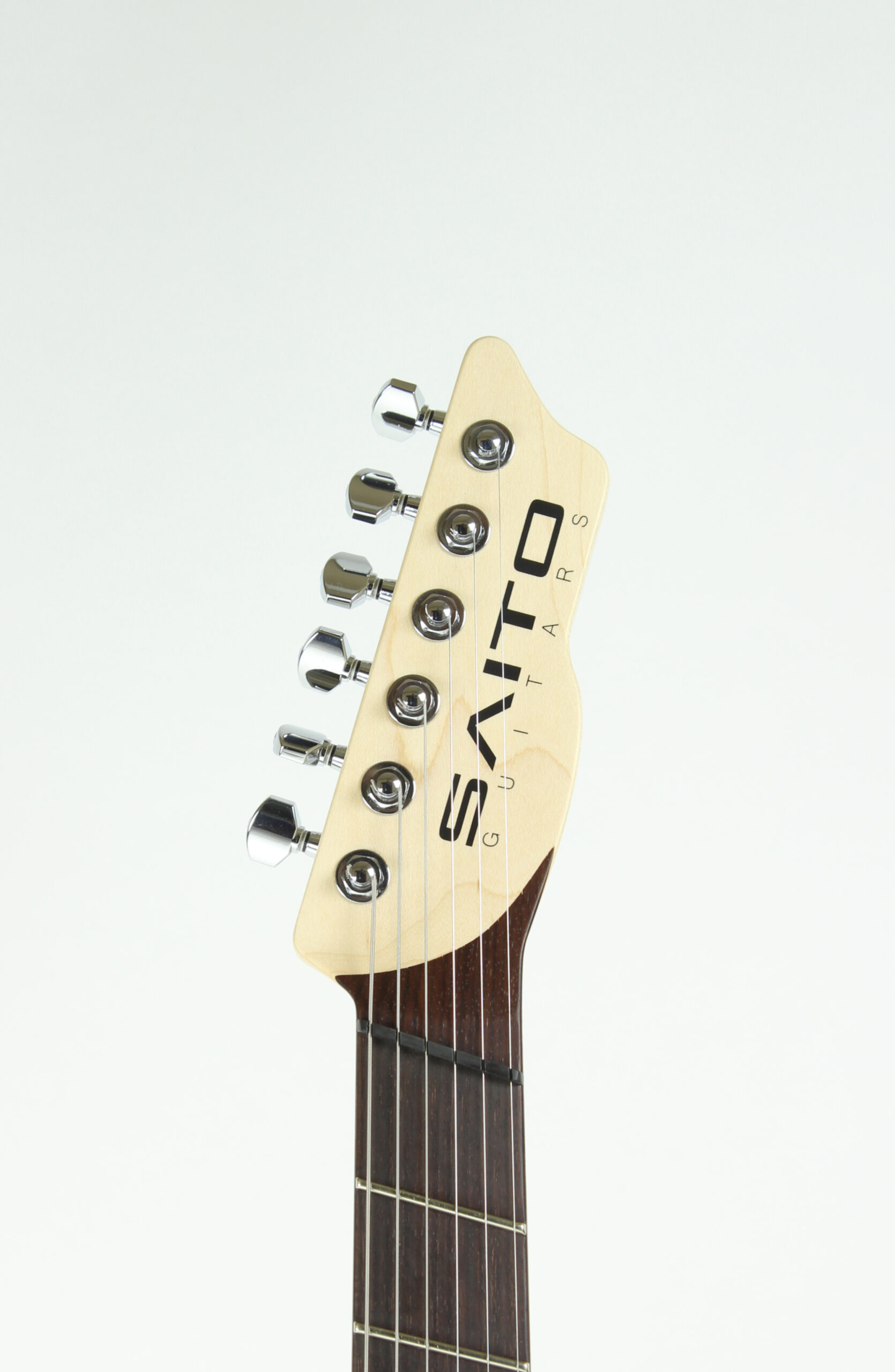

- モデルと仕様に合ったロゴがセレクトされます。
It is selected a logo that matches the model and specifications. - No.4でWengeを選択した場合、No.5で選択したLine woodのカラーと同色となります。
The logo is the same color as Line Wood choosing at No.5 if you choose Wenge at No.4.
このモデルはピックガードを採用していません。
It is the model that does not come with Pickguard.
HH Layoutとなります。オプションはありません。
The pickup is only HH layout. There is no options.
- Sledgeα-Bore Up Set
フロントにSledgeα、リアにBore Upを組み合わせたセットです。
It is the set that combine Sledge a for front pickup and Bore Up for rear pickup.

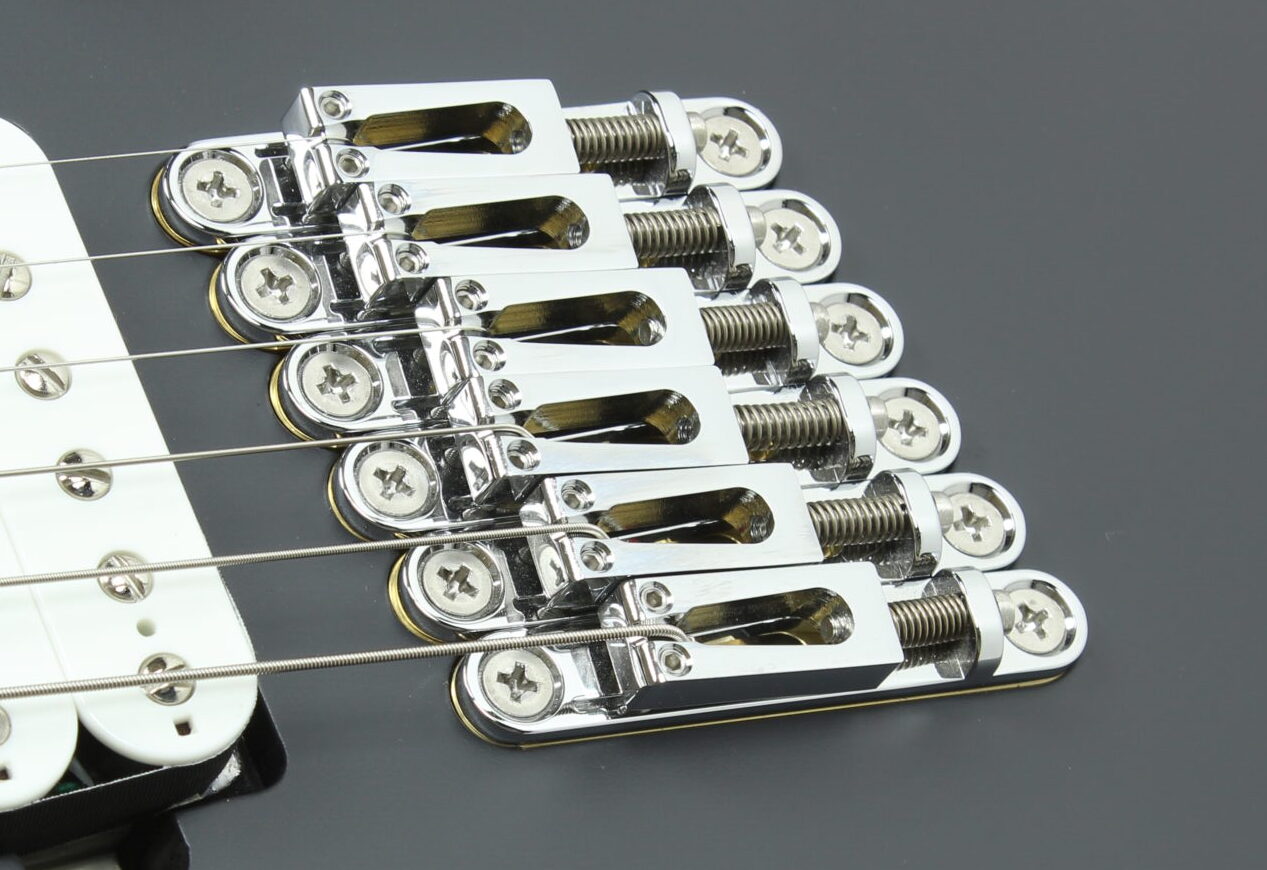

SAITO HTI Bridgeが搭載されます。オプションはありません。
It is installed SAITO HTI Bridge. There is no options.
GOTOH SG381 MG-Tが搭載されます。オプションはありません。
It is installed GOTOH SG381 MG-T. There is no options.
