SPECIFICATIONS
Dimensions
Material & Hardware
Electronics
Accessory
Dimensions
・Body
| Shape: | Classic |
| Thickness: | 45mm |
・Neck
| Scale: | 25.5inch(648mm) |
| Fret: | 22F Jescar FW-51100 Nickel Silver |
| Radius: | 10-12inch Compound Radius |
| Shape: | Standard Grip |
| Thickness: | 1F-21mm 12F-24mm |
| Nut wide: | 42mm |
| String Pitch: | 10.8mm |
Material & Hardware
| Body: | Alder 2P |
| Neck: | Hard Maple |
| Fingerboard: | Indian Rosewood or Hard Maple |
| Top Position Mark: | Celluloid Dots |
| Side Position Mark: | Luminlay Dots |
| Tuners: | GOTOH SD91 MG-T |
| Bridge: | GOTOH 510T-SF1 |
| Knobs: | Plastic Hat Knob |
| Hardware Color: | Chrome or Black |
| Strings: | EXL110 10-46 |

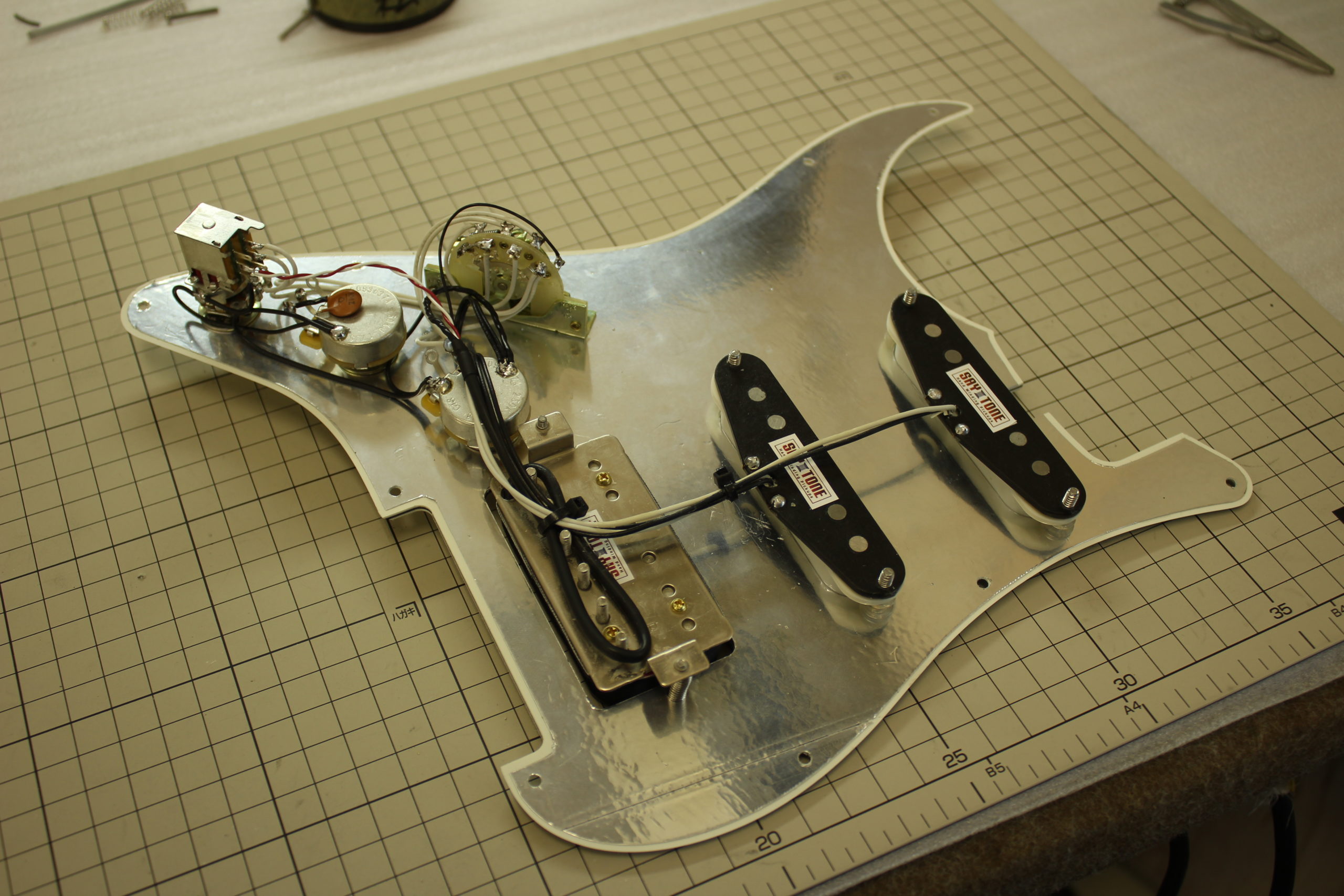

Electronics
| SSS: | SAYTONE Hand Winding Pickups – Growl set 1Volume-2Tone 5way Switch |
| SSH: | SAYTONE Hand Winding Pickups – Growl (F, M) & Bore Up (R) set 1Volume-Single Coil Tone-Humbucker Tone(Tap) 5way Switch |
| HH: | SAYTONE Hand Winding Pickups – Sledgeα(F) & Bore Up(R) set 2Volume-1Tone(Tap) 3way Switch |
Accessory
How to order S-622CS
- S-622CS

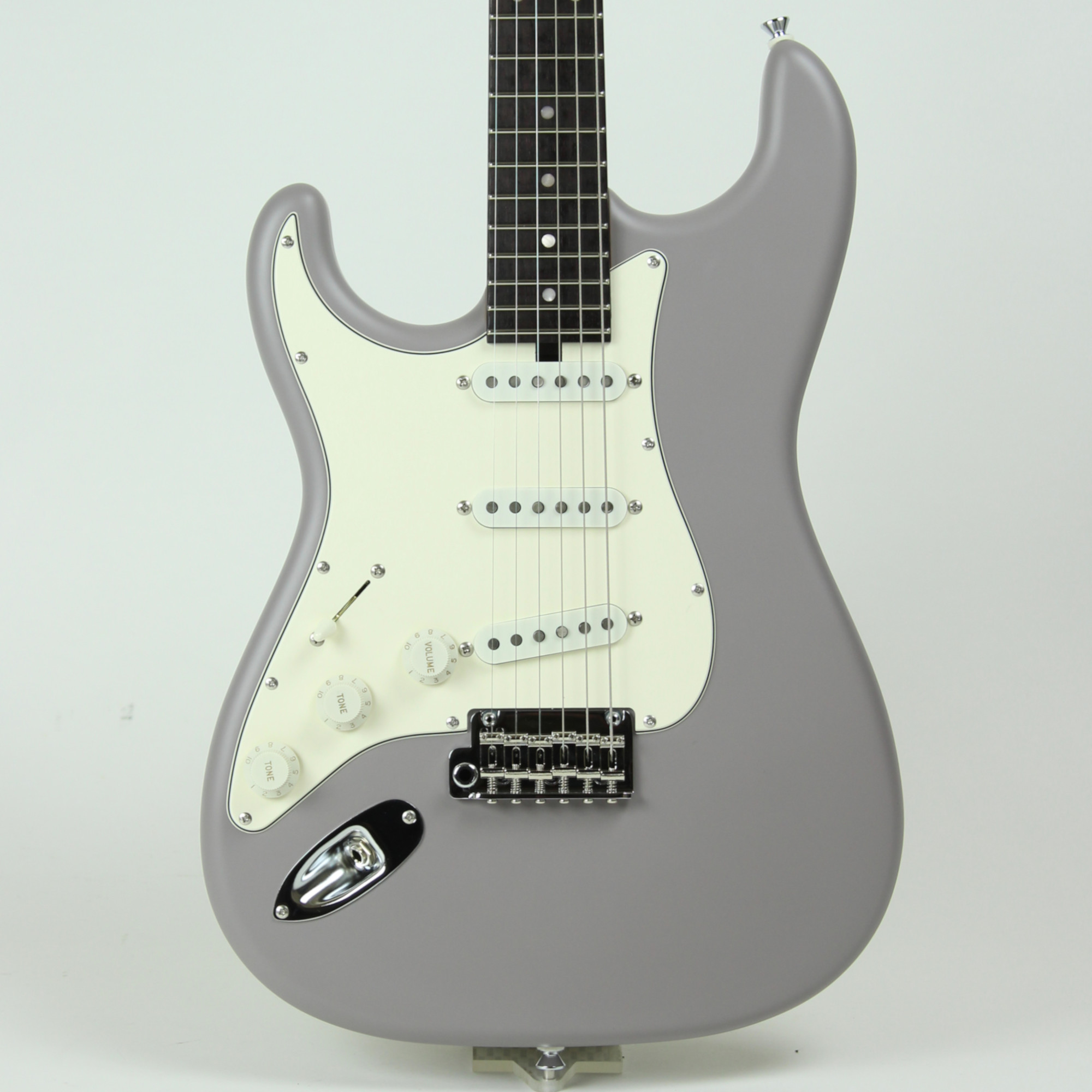

- S-622CSL (Lefty)
- Choose your favorite a top body color from Color List.
Color Listから選択して下さい。
Hard Maple Neck
It is installed Standard Dots as follows if you choose Hard Maple at No.4.
No.4でHard Mapleを選択している場合はStandard Dotsが搭載されます。


Wenge Neck
It is added Luminlay Dots as follows if you choose Wenge at No.4.
No.4でWengeをセレクトしている場合はLuminlay Dotsが追加されます。


It is installed Luminlay Dots on neck side. There is no options.
Luminlay Side Dotsが搭載されます。オプションはありません。
- It is selected a logo that matches the model and specifications.
モデルと仕様に合ったロゴがセレクトされます。 - It is the same color as Line Wood selected at No.5 if you choose Wenge at No.4.
No.4でWengeを選択した場合、No.5で選択したLine woodのカラーと同色となります。
- Growl-Bore Up Set
It is the set that combine Growl for front pickup and Bore Up for rear pickup.フロント&ミドルにGrowl、リアにBore Upを組み合わせたセットです。

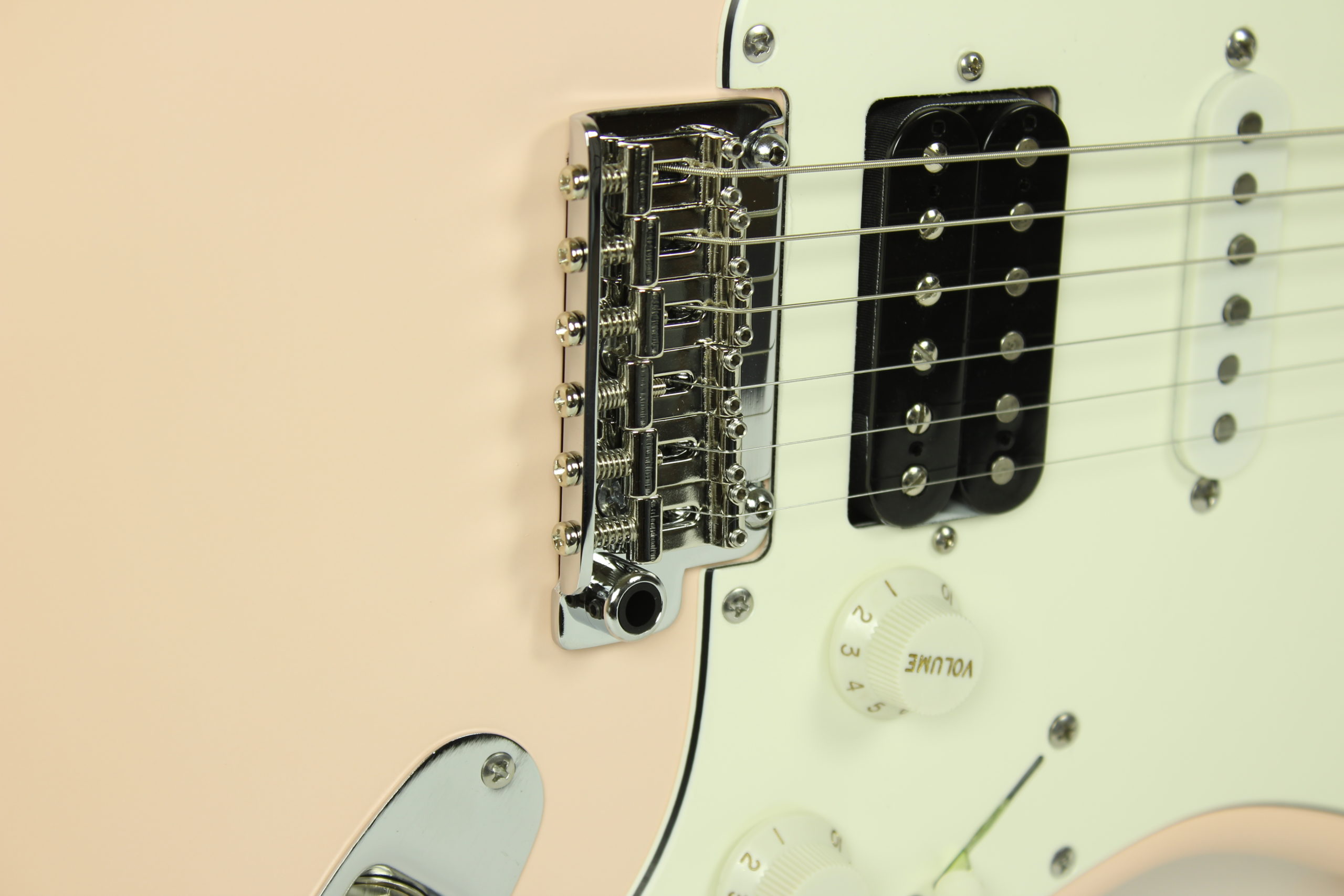

GOTOH 510T-SF1 Tremoloが搭載されます。オプションはありません。
It is installed GOTOH 510T-SF1 Tremolo and there is no option.
GOTOH SD91 MG-Tが搭載されます。オプションはありません。
It is installed GOTOH SD91 MG-T. There is no option.
